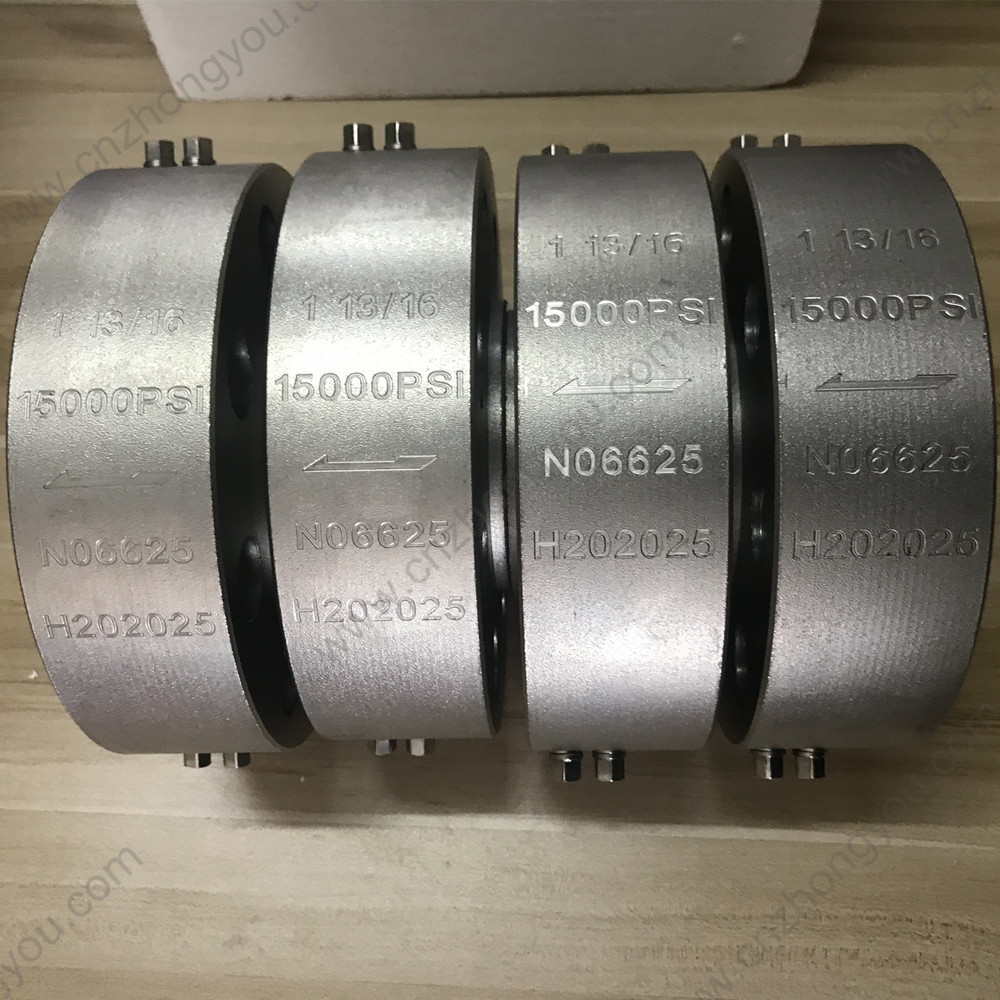

N06625 Lug Check Valve 1 13/16 150000PSI
- Type
- N06625 Lug Check Valve 1 13/16 150000PSI
- Size
- 1 13/16''
- Pressure
- 150000PSI
- Body material
- ASTM B564 UNS N06625
- Trim material
- ASTM B564 UNS N06625
- Connection ends
- RF ends
Product Description
Brand:ZYI
Place of Origin:China
Service:OEM&ODM
Packing:inside: Plastic Film, outside: Plywood case
Standards:
1 Design and manufacture: ASME B16.34
2 Face to Face dimension: ASME B16.10
3 Flanged End: ASME B16.5 RF
4 Pressure test: API 598
Materials of main parts
|
No |
Part |
Matarial |
|
1 |
Body |
ASTM B446 N06625 |
|
2 |
Seat ring |
ASTM B446 N06625 |
|
3 |
Disc |
ASTM B446 N06625 |
|
4 |
Pin |
S.S |
|
5 |
Nut |
ASTM A194 8M |
|
6 |
Gasket |
S.S |
|
7 |
Hinge |
ASTM B446 N06625 |
|
8 |
Hinge Pin | S.S |
|
9 |
Bolt |
ASTM A193 B8M |
|
10 |
Gasket |
304+Graphite |
|
11 |
Bonnet |
ASTM B446 N06625 |
|
12 |
Bolt |
ASTM A193 B8M |
|
13 |
Nut |
ASTM A194 8M |
|
14 |
Eyescrew |
S.S |
