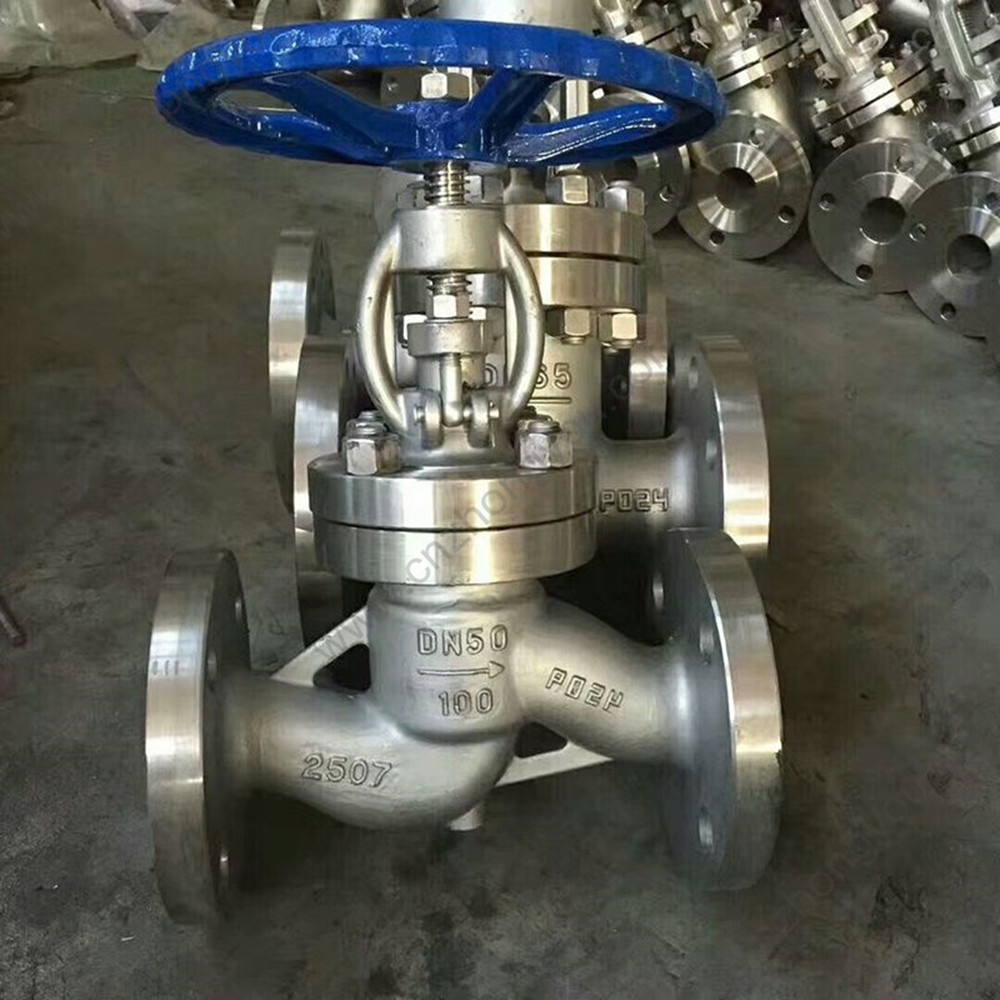

2507 globe valve DN50 PN100
- Type
- 2507 globe valve DN50 PN100
- Size
- DN50
- Pressure
- PN100
- Body material
- 2507
- Trim material
- 2507
- Connection ends
- RF ends
Product Description
Brand:ZYI
Place of Origin:China
Service:OEM&ODM
Packing:inside: Plastic Film, outside: Plywood case
Standards:
1 Design and manufacture: ASME B16.34
2 Face to Face dimension: ASME B16.10
3 Flanged End: ASME B16.5 RF
4 Pressure test: API 598
Materials of main parts
|
No |
Part |
Matarial |
|
1 |
Body |
ASTM A995 5A(2507) |
|
2 |
Seat ring |
ASTM A995 5A+STL |
|
3 |
Disc |
ASTM A995 5A |
|
4 |
Split ring |
S.S |
|
5 |
Disc cover |
S,S |
|
6 |
Stem |
ASTM A995 5A |
|
7 |
Gasket |
316+Graphite |
|
8 |
Bonnet | ASTM A995 5A |
|
9 |
Stud |
ASTM A193 B8M |
|
10 |
Nut |
ASTM A194 8M |
|
11 |
Backseat |
ASTM A995 5A |
|
12 |
Packing |
Graphite |
|
13 |
Gland |
ASTM A995 5A |
|
14 |
Pin |
S.S |
|
15 |
Gland Bolt |
ASTM A193 B8M |
|
16 |
Gland Nut |
ASTM A194 8M |
|
17 |
Stem nut | Bronze |
